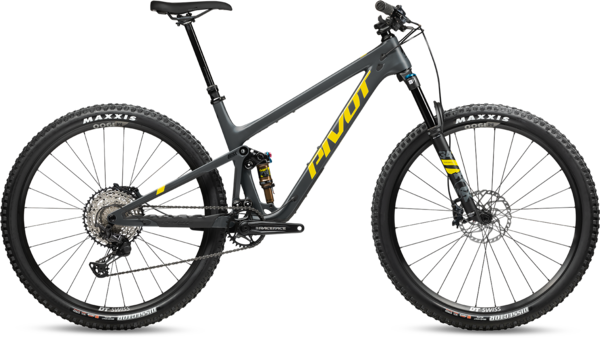

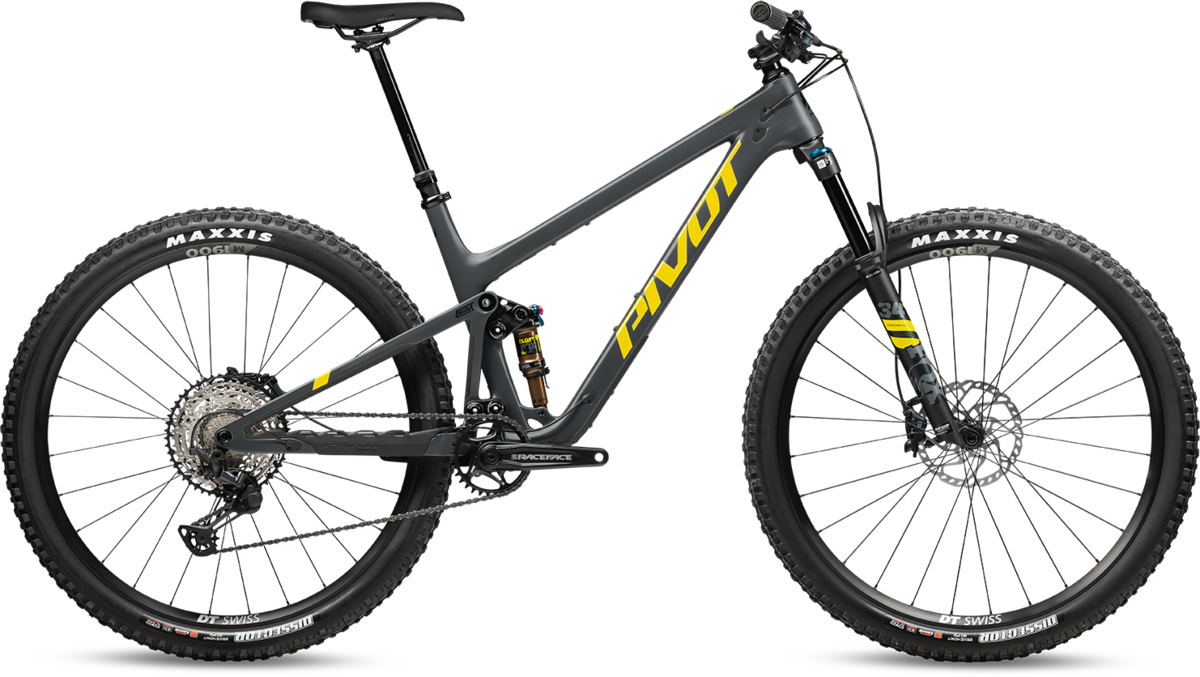

Pivot Cycles Trail 429 Ride SLX/XT

Pivot Cycles Trail 429 Ride SLX/XT
  • Color: Pacific Blue
  • Color: Silver Metallic
  • Color: Willow Green
$6,199.00
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

Evolution of a Classic

This latest iteration of the Trail 429 is evidence of our constant quest for peak performance. We’ve broadened its capabilities without sacrificing its legendary sharpness: slackening the head angle just enough, increasing the reach, and introducing a flip-chip to allow fine-tuning of the geometry toward either the rowdy or racy ends of the spectrum.

All-Star Suspension

Is it possible for a bike to be both razor-sharp and butter-smooth? Yes. The Trail 429 is proof. In order to wring every drop of potential out of 120mm, we’ve reworked the already stellar dw-link suspension to provide a more bottomless feel and allow for a greater range of tunability. The Trail 429 combines rocket ship pedaling performance with a plushness that genuinely feels like more travel than the numbers indicate.

Product Details:

- Refined geometry exemplifies the pinnacle of modern race-to-trail performance
- New, more progressive dw-link® prioritizes pedaling efficiency yet still rewards riders with plush, controlled travel
- 120mm rear suspension travel featuring a vertical trunnion mounted high-volume air shock delivers unprecedented comfort and tunability
- Flip chip adjustability allows riders to tailor geometry for either spirited all-round handling or a more progressive and rowdy demeanor
- Hassle-free, full-length, internal cable routing with Pivot’s easy-to-service and ultra-quiet Pivot Cable Port System
- Fits riders between 4’10” and 6’7” with X-Small to X-Large size offerings
- Pivot’s full carbon frame features size-specific ride tuning, leading edge carbon fiber materials, and Pivot’s proprietary hollow core molding technology to ensure that every rider from 4’11” to 6’7” has a bike that feels perfect and performs at the optimum level for their size
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame

Sizes:
Frame SizeX-SmallSmallMediumLargeX-Large
Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47 cm
Top Tube Length 57.2 cm 59.5 cm 62.8 cm 64.4 cm 66.7 cm
Head Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
Head Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
Seat Tube Angle (Eff.) 75.5° 75.5° 75.5° 75.5° 75.5°
Chainstay Length 43 cm 43 cm 43 cm 43 cm 43 cm
Bottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm 34.7 cm
Bottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm 2.7 cm
Standover 63.6 cm 66.8 cm 67 cm 68.2 cm 69.6 cm
Wheelbase 112.8 cm 115.2 cm 118.7 cm 120.4 cm 122.9 cm
Reach 41 cm 43 cm 46 cm 47.5 cm 49.5 cm
Stack 58.4 cm 59.3 cm 60.4 cm 60.9 cm 62.1 cm
Sizes:
Frame SizeX-SmallSmallMediumLargeX-Large
Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47 cm
Top Tube Length 57.3 cm 59.6 cm 62.9 cm 64.5 cm 66.9 cm
Head Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
Head Tube Angle 66° 66° 66° 66° 66°
Seat Tube Angle (Eff.) 75° 75° 75° 75° 75°
Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
Bottom Bracket Height 34 cm 34 cm 34 cm 34 cm 34 cm
Bottom Bracket Drop 3.3 cm 3.3 cm 3.3 cm 3.3 cm 3.3 cm
Standover 63.1 cm 66.2 cm 66.4 cm 67.7 cm 69 cm
Wheelbase 112.9 cm 115.3 cm 118.8 cm 120.5 cm 123 cm
Reach 40.5 cm 42.5 cm 45.5 cm 47 cm 49 cm
Stack 58.8 cm 59.7 cm 60.8 cm 61.3 cm 62.5 cm
Sizes:
Frame SizeRider Height (in)
X-Small 4'11" - 5'4"
Small 5'4" - 5'9"
Medium 5'8" - 5'11"
Large 5'10" - 6'2"
X-Large 6'2" +

Videos

Part Numbers

Option UPC MPN Store SKU
Pacific Blue / X-Small 196338119283 00TLCV329ASXA--BLUXSDRPNN
Pacific Blue / Small 196338119269 00TLCV329ASXA--BLUSMDRPNN
Pacific Blue / Medium 196338119252 00TLCV329ASXA--BLUMDDRPNN 210000062929
Pacific Blue / Large 196338119245 00TLCV329ASXA--BLULGDRPNN 210000062623
Pacific Blue / X-Large 196338119276 00TLCV329ASXA--BLUXLDRPNN
Silver Metallic / X-Small 196338119337 00TLCV329ASXA--SILXSDRPNN
Silver Metallic / Small 196338119313 00TLCV329ASXA--SILSMDRPNN
Silver Metallic / Medium 196338119306 00TLCV329ASXA--SILMDDRPNN
Silver Metallic / Large 196338119290 00TLCV329ASXA--SILLGDRPNN 210000058911
Silver Metallic / X-Large 196338119320 00TLCV329ASXA--SILXLDRPNN 210000058230
Willow Green / X-Small 196338119467 00TLCV329ASXA--WGNXSDRPNN
Willow Green / Small 196338119405 00TLCV329ASXA--WGNSMDRPNN
Willow Green / Medium 196338119375 00TLCV329ASXA--WGNMDDRPNN
Willow Green / Large 196338119344 00TLCV329ASXA--WGNLGDRPNN
Willow Green / X-Large 196338119436 00TLCV329ASXA--WGNXLDRPNN

Reviews
