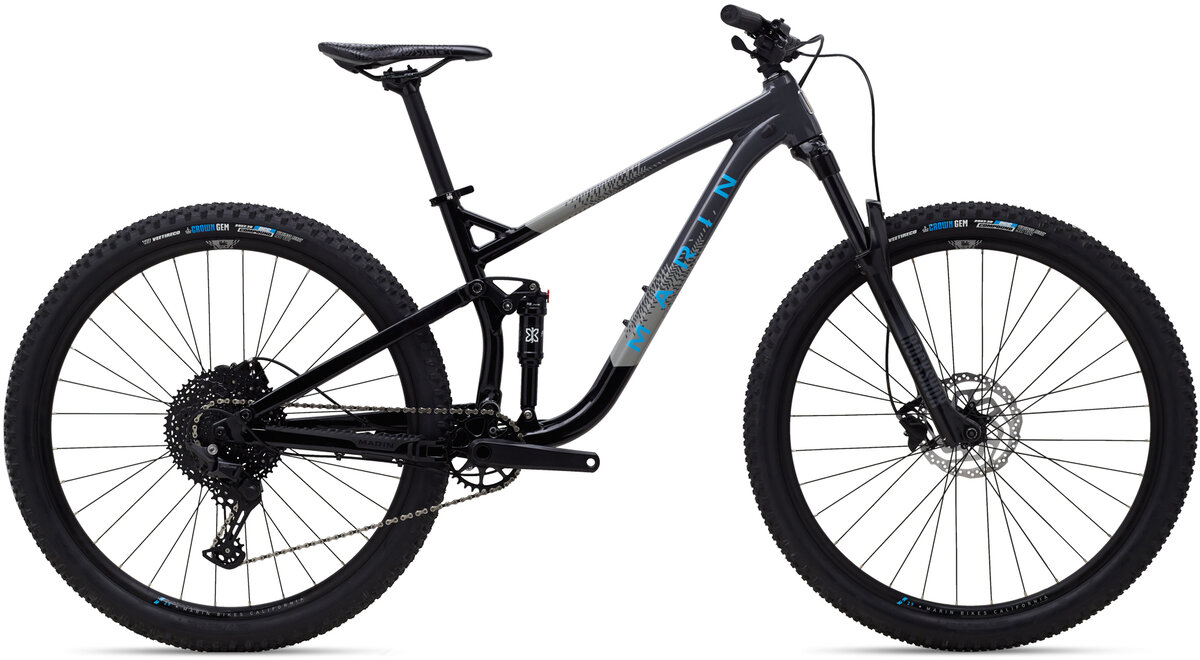

The Rift Zone represents the most modern 29" short travel trail bike possible featuring 125mm of MultiTrac suspension and progressive geometry that takes full advantage of decades of trail riding experience to create best-in-class handling, both in and out of the saddle. The Rift Zone is an ideal bike for mixing it up between long trail days in the saddle and fast weeknight group rides.
Series 3 Aluminum Frame
Rift Zone 1, 2, and 3 models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature and high-performing upgrade worthy platform.
Multitrac Suspension Technology
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.
Both carbon and alloy frames sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a clean and rattle-free cable set up.
- Series 3 aluminum frame
- RockShox Recon Silver RL 130mm fork
- X-Fusion O2 Pro R shock
- Shimano Deore 1x11 drivetrain
- Shimano BR-MT201 hydraulic disc brakes
|Frame||Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs|
|Fork||RockShox Recon Silver RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, Maxle Stealth, 42mm Offset|
|Headset||FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”|
|Rear Shock||X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom|
Front: 110 x 15 thru-axle
Rear: 141mm QR
|Rims/Wheels||Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible|
Front: Shimano HF-MT400B, Centerlock
Rear: Shimano HB-MT200B, Centerlock, Standard Freehub Body
|Spokes||14g Black Stainless Steel|
|Tires||Vee Tire Crown Gem 29x2.3", Dual Control Compound, Tubeless Ready|
|Crankset||Marin Forged Alloy, Boost Spacing|
|Chainrings||Integrated Steel 32T Narrow Wide|
|Bottom Bracket||External Sealed Cartridge Bearing|
|Chain||KMC X-11 Silver and Black|
|Rear Derailleur||Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed|
|Cassette/Rear Cogs||SunRace, 11-Speed, 11-51T, ED Black|
|Shifters||Shimano Deore, 11-Speed, SL-5100R|
|Handlebars||Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back|
|Tape/Grips||Marin MTN, Closed End|
|Stem||Marin 3D Forged Alloy, 35mm|
|Brake Levers||Shimano BR-MT201 Hydraulic Disc|
|Brakes||Shimano BR-MT201 Hydraulic Disc, 180mm Rotors|
|Saddle||Marin Speed Concept|
|Seat Post||Marin Alloy, 30.9mm|
* Subject to change without notice.
|Grey/Black/Blue / Small||843346107329||732405001|
|Grey/Black/Blue / Medium||843346107336||732405002||210000058153|
|Grey/Black/Blue / Large||843346107343||732405003||210000058154|
|Grey/Black/Blue / X-Large||843346107350||732405004||210000060185|
