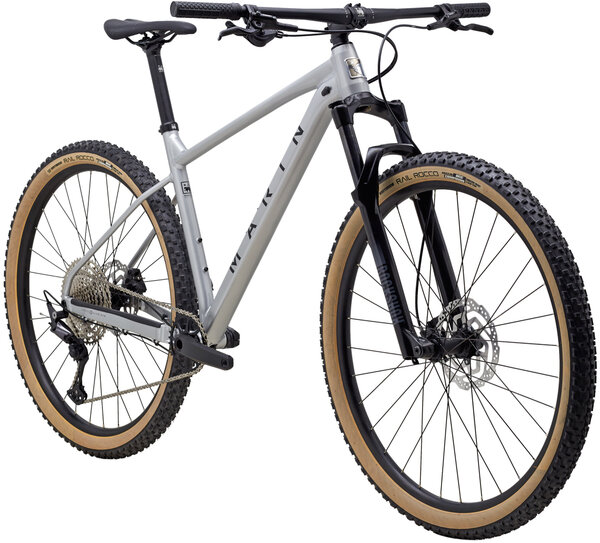

Modern XC races look like a fast day on the local singletrack, requiring a light and capable bike that can maintain speed and control on every part of the trail, up or down. The Team Marin blends the confidence and fun of a trail bike with a lightweight frame and parts that help you keep the speed up and the fun meter maxed.
Series 4 Aluminum Frame
The Team Marin features Series 4 aluminum frames, with advanced tube forming for minimal weight, 3D forged dropouts, flat-mount disc tabs, full internal cable routing, and a boost 148mm thru axle.
Internal Dropper Post Routing
The Team Marin frame includes internal routing in the front triangle for a clean, fast appearance, and allowing for Team Marin 1 owners to upgrade to an internal dropper post if they desire.
Bridgeless Fastback Seatstays
Slim fastback seatstays, without the bridge, give great tire clearance, as well as adding vertical compliance for long-ride comfort without sacrificing power transfer.
29" Wheels And 2.35" Tires For Maximum Speed
29" wheels and 2.35" XC tires ensure maximum grip and float over obstacles to maintain speed so you can pick up those personal records and keep ahead of the pack.
- Superlight aluminum frame
- RockShox Judy Silver TK 120mm fork
- Shimano Deore 1x12 drivetrain
- Shimano BR-MT201 hydraulic disc brakes
|Frame||Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum Frame, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing|
|Fork||RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, Maxle Stealth, 51mm Offset|
|Headset||FSA No 42ACB, 1 1/8" x 1 1/2"|
Front: 110 x 15mm thru-axle
Rear: 148 x 12mm thru-axle
|Rims/Wheels||Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible|
Front: Forged Aluminum, Centerlock Disc, 32H
Rear: Shimano, MicroSpline, Centerlock Disc, 32H
|Spokes||14g Black Stainless Steel|
|Tires||Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready|
|Crankset||Marin Forged Alloy 1x12, Hollow Spindle|
|Chainrings||Steel Narrow Wide 32T Direct-Mount|
|Bottom Bracket||External Sealed Cartridge Bearings|
|Rear Derailleur||Shimano Deore 12-Speed|
|Cassette/Rear Cogs||Shimano Deore 12-Speed, 10-51T|
|Shifters||Shimano Deore 12-Speed|
|Handlebars||Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back|
|Tape/Grips||Marin Single Clamp Locking|
|Stem||Marin 3D Forged Alloy, 35mm|
|Brake Levers||Shimano BL-MT201 Hydraulic|
Front: Shimano BR-MT201 Hydraulic Disc, 180mm Centerlock Rotor
Rear: Shimano BR-MT201/UR300 Post-Mount Hydraulic Disc, 180mm Centerlock Rotor
|Saddle||Marin Speed Concept|
|Seat Post||Marin Alloy, 30.9mm|
* Subject to change without notice.
|Gloss Chrome/Black / Small||843346107749||732415001||210000058492|
|Gloss Chrome/Black / Medium||843346107756||732415002|
|Gloss Chrome/Black / Large||843346107763||732415003|
|Gloss Chrome/Black / X-Large||843346107770||732415004||210000058493|
